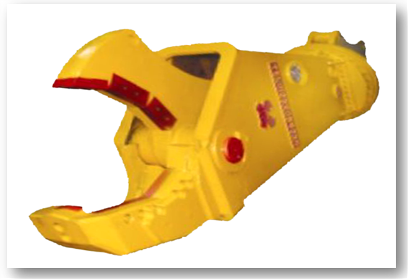

Shear Attachment (GIANT)

Hua Wei Machine produces high-quality, high-performing, long lasting shear attachments, compatible with most leading excavators. They offer two different sizes attachments to support your requirements:

  Model No: HW250 (GIANT)

Compatible Excavator Model

  • CAT (300-400)
  • KATO (300-400)
  • HITACHI (300-400)
  • KOMATSU (300-400)
  • SUMITOMO (300-400)

GIANT Technical Data

unit : mm / kg Model No. HW250
Operation Mode 360° Rotation
Shear Weight 5,500kg
Shear Length
Max. Shearing Force 270,000kg
Front Blade Shearing Force 157,000kg
Performance would be dependent on the status of excavator
Opening Width 750mm
Opening Depth 850mm
Front Blade Thickness 137mm
Blade Maintenance by welding when wears
The Blade
7 pcs a set – 4 sides for use
Extremely Long Life Span
Each blade side can be welded when wears;
No blade replacement necessary

Actual Blade Consumption is dependent on the various scraps processed

For more detailed information please click HERE.


HUA-WEI MACHINE was founded in 1968. A reliable and trustworthy manufacturer, specializing in the design & manufacturing of scrap iron/steel shearing machines and special purpose hydraulic cylinders. For over 40 years, Hua-Wei Machine has been devoted to the development and innovation of Automatic Hydraulic Swing-Cut Scrap Shear machines.

Hua-Wei is a proven manufacture of high-quality products and services. To date, Hua-Wai has supplied nearly 500 units of the HW Series Shear for the mid and large-scale recycling yards globally.
